US-Lasers - Green Laser Diode Module Systems

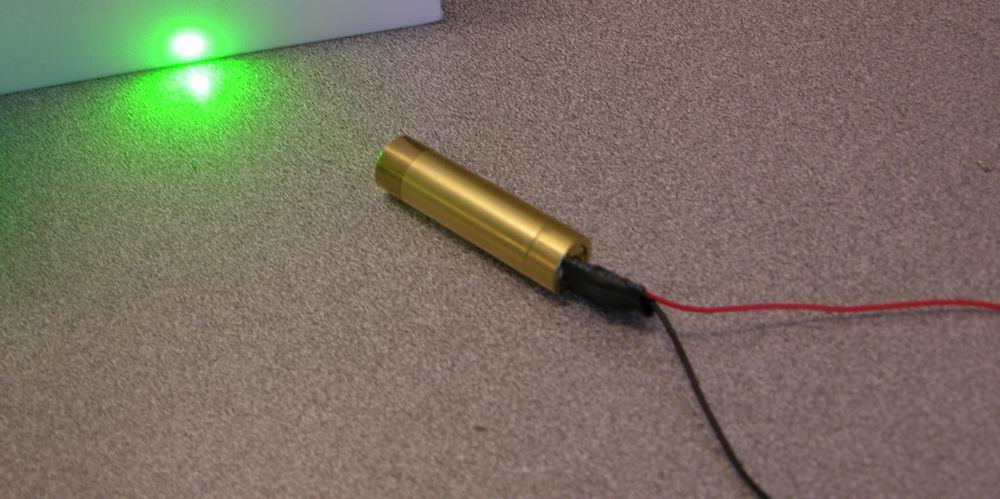

532nm Green Laser Module - $135.00

Key Features:

  • Automatic power control (APC) circuit with limited current to protect the green laser module
  • Low operating current
  • Output power stability 5%
  • Compact size

OPTIONS and APPLICATIONS for Green Laser Diode Modules: Line Generation, Alignment Fixtures, Medical Applications, Gun Sights,
Pointing Devices, Targeting/Aiming, Leveling, Machine Alignment, Laser Light Shows, Laser R&D, Custom Housings,
Laser Configurations and Turnkey systems.

US-Lasers, Inc., high quality green laser diode modules for OEM and R&D applications. Virtually NO lead time makes US-Lasers a
leader in providing on time delivery and quality products for OEM's where delivery is of utmost importance.

3vDC is the optimal voltage although higher voltages can be used, they will shorten the diodes MTTF.

Specifications

Part No.
Wavelength 532 nm
Mode TEMoo
Output power (mW) @ 5VDC, 25 °C
 0.5 - 0.9 (X=1), 1.2 - 4.99 (X=3), 3 - 4.99 (X=5)
Operating Current (A) <0.30
Operating Voltage 3V DC
Circuit Design APC with limited current, CW operation mode
Stability* < or = to 5% @ 25°C ± 3°C
Linewidth <0.1 nm
Polarization Linear
Beam Divergence <1.4mrad
Beam Diameter < 1 mm
Connector Standard: black (-) & red (+) wires
Storage Temperature 10 - 50 °C
Optimum Operating Temperature 22 - 28 °C
Dimemsions (L x W x H) Dia. 12mm x L. 35.5+/-0.5mm (green laser head), 8.8 x 20.5+/-0.5mm (driver circuit board)

*Additional heat sink or cooling fan may be needed to stabilize the output power of laser module if the laser module is operated continuously in a period of time
